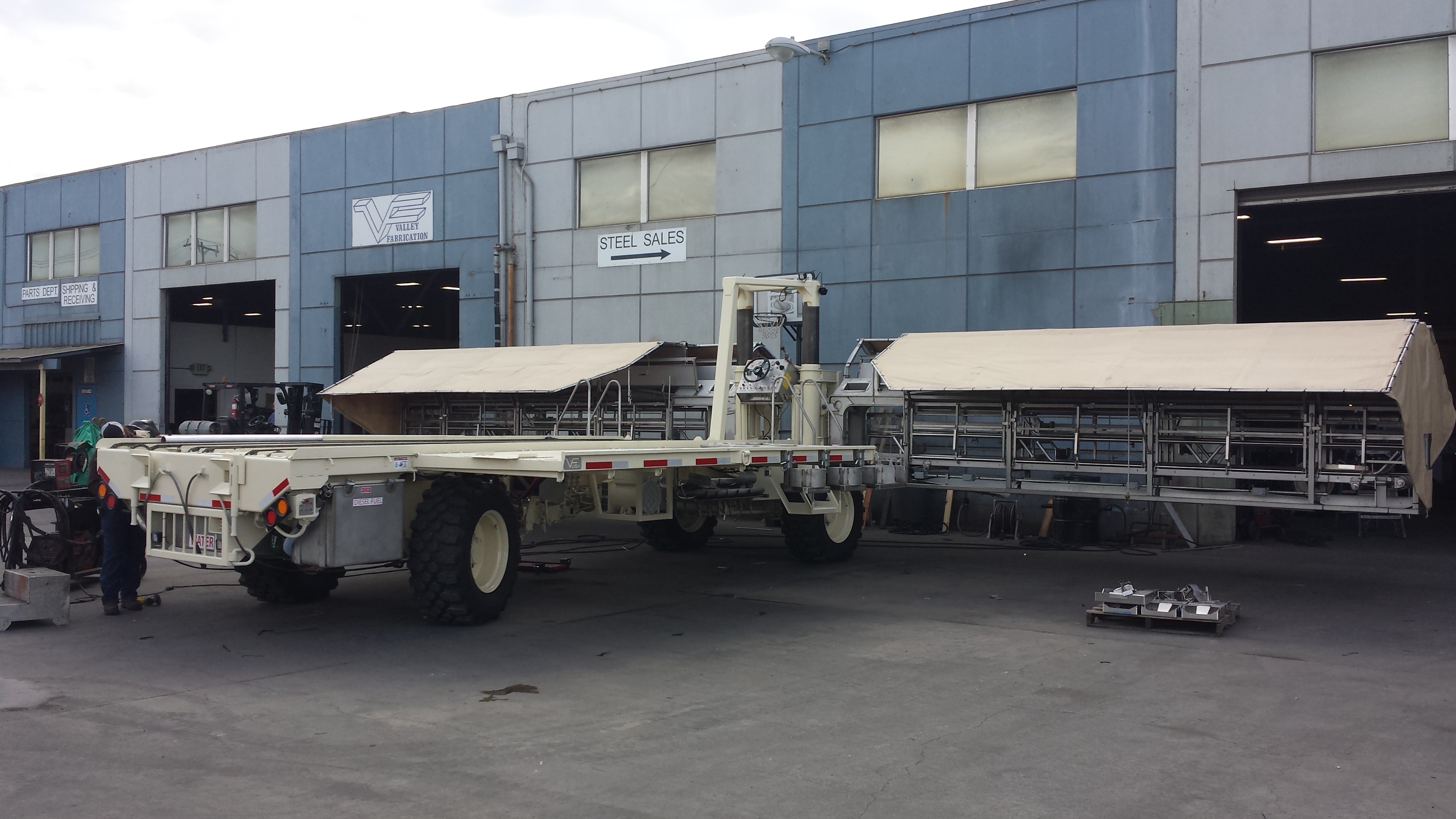

- 14 bed or 16 bed stainless steel wings
- 16″ wing conveyor with RMV belting, hydraulically driven

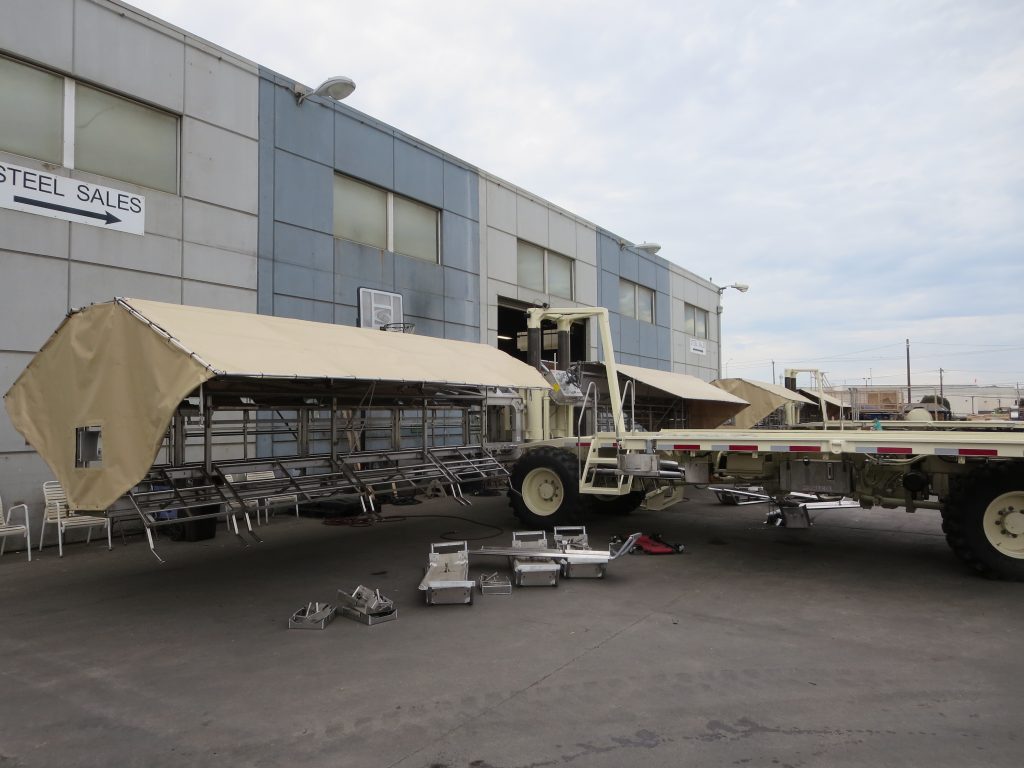

- Fold out shade structures for workers on wings
- Set up trays clip onto wing
- Water system with drop down hoses for each packer

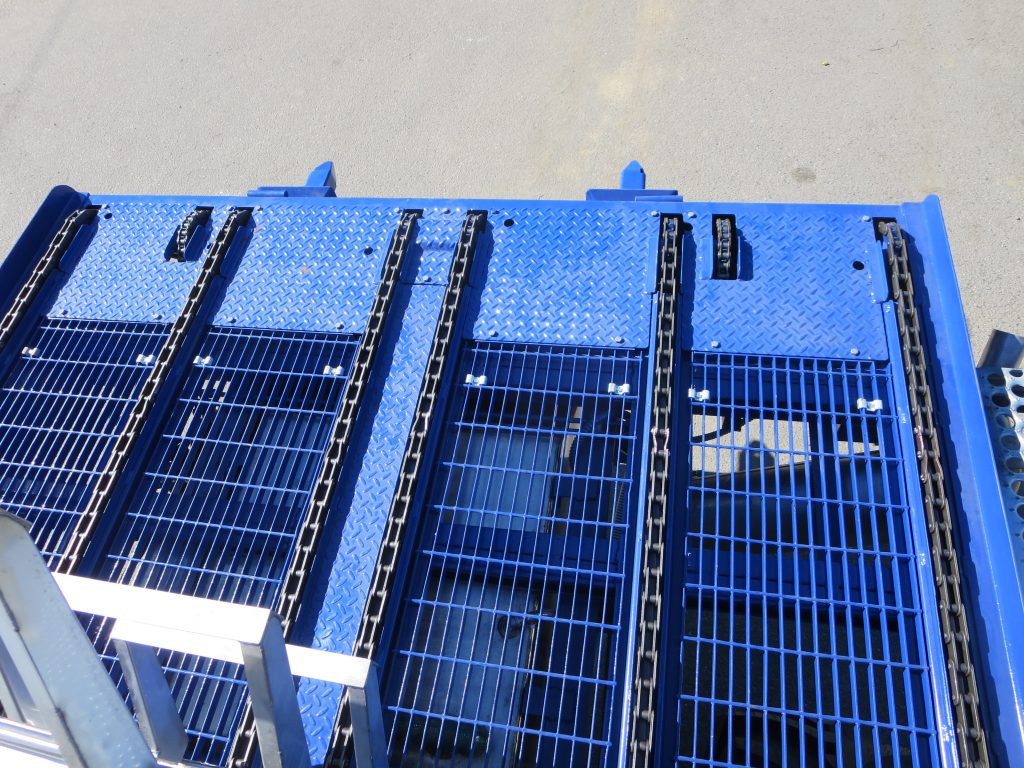

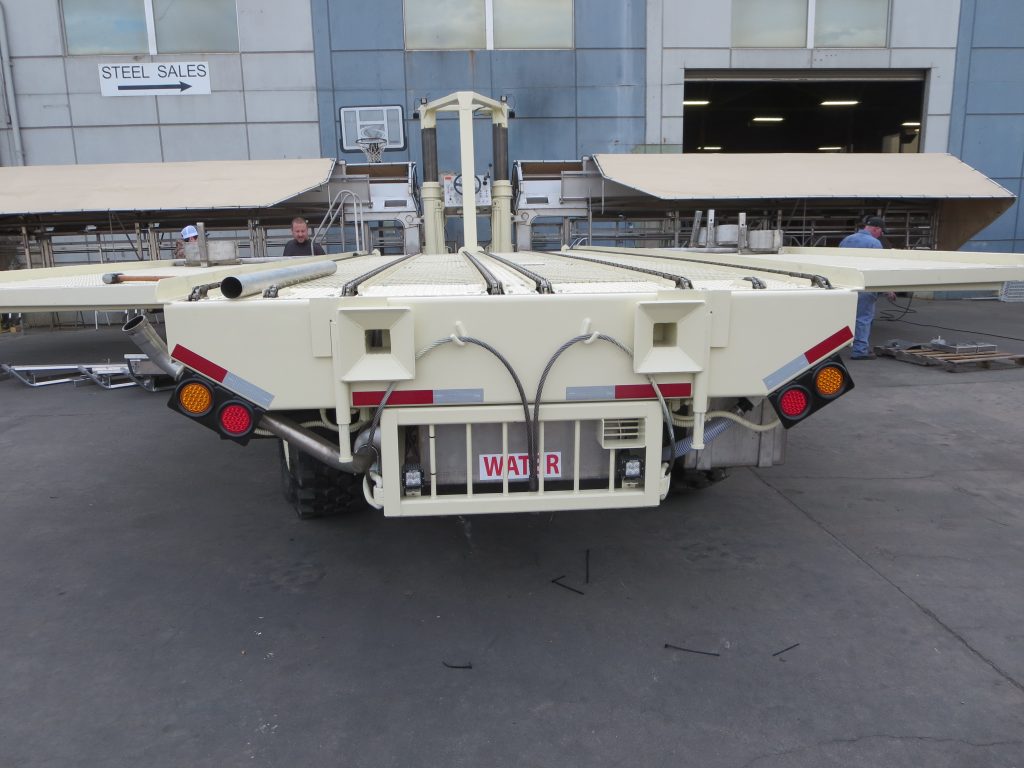

- 10 pallet chain transfer deck
- Side platforms with powered or non powered options
- Three transfer chains per side of powered platforms
- Hydraulically folding
- Cummins Tier 4 Final Engine
- 2 OMSI drive steer axles with internal SAHR brakes and 100% differential lock

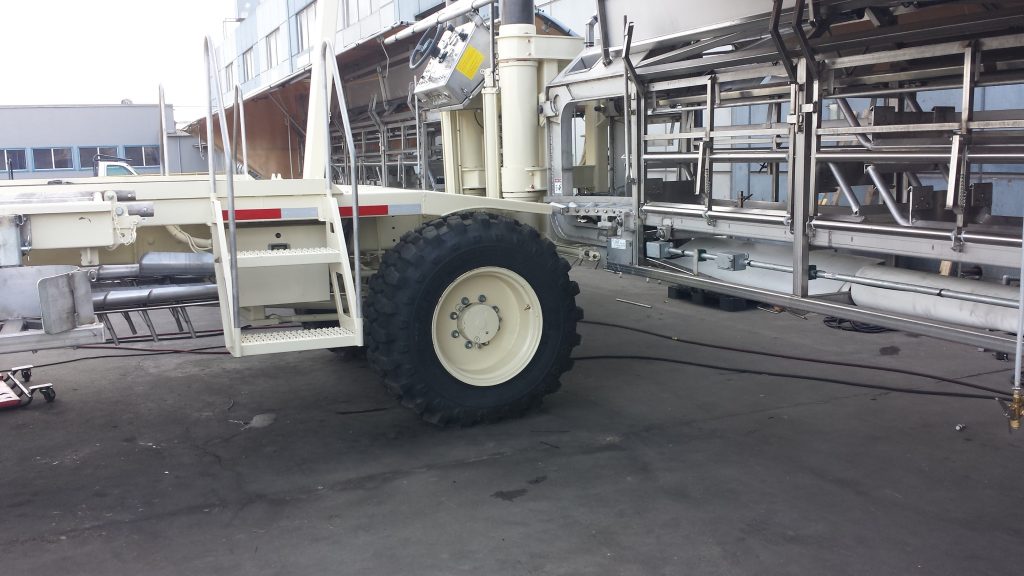

- 17.5″ x 24″ tires
- Optional on board Pressure washer unit
- LED flood lights and LED strip lights for night harvesting
- Powertrain
- Cummins QSF 2.8 64 hp
- Omsi Axles with SAHR vrakes and 100% differential lock

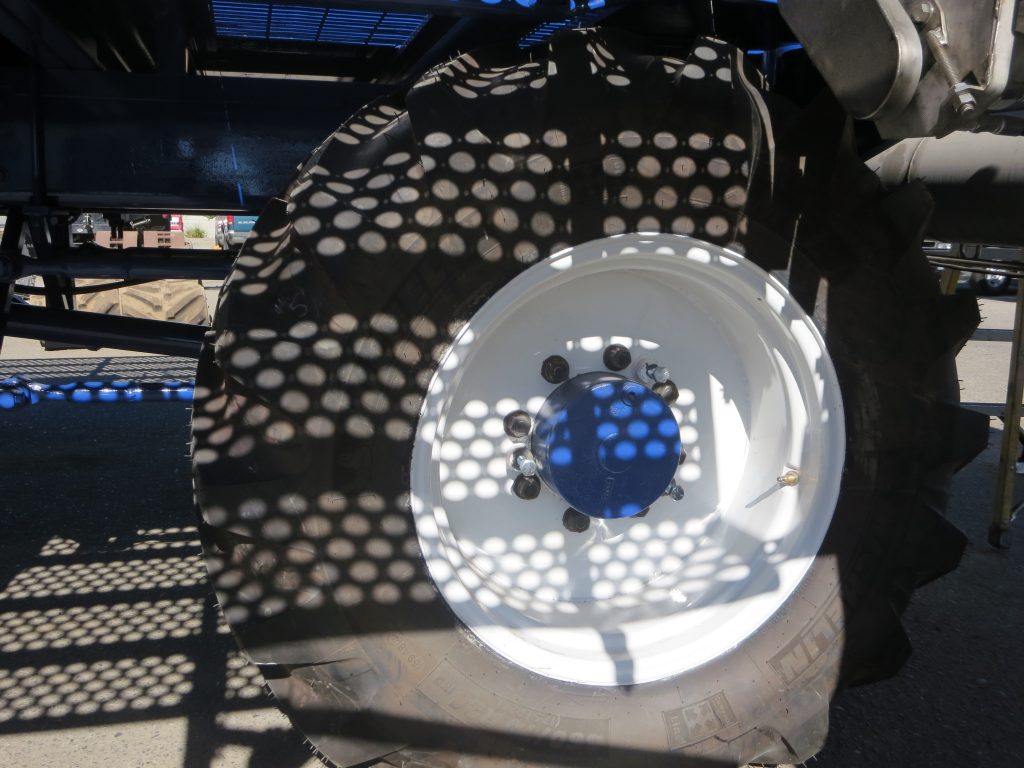

- 460/70R 24 Michelin Bib Load hard surface tires centered on 82″
- 210″ Wheelbase
- 8″ Axle Jacks on Mast end of machine
- Steel construction on Main Machine

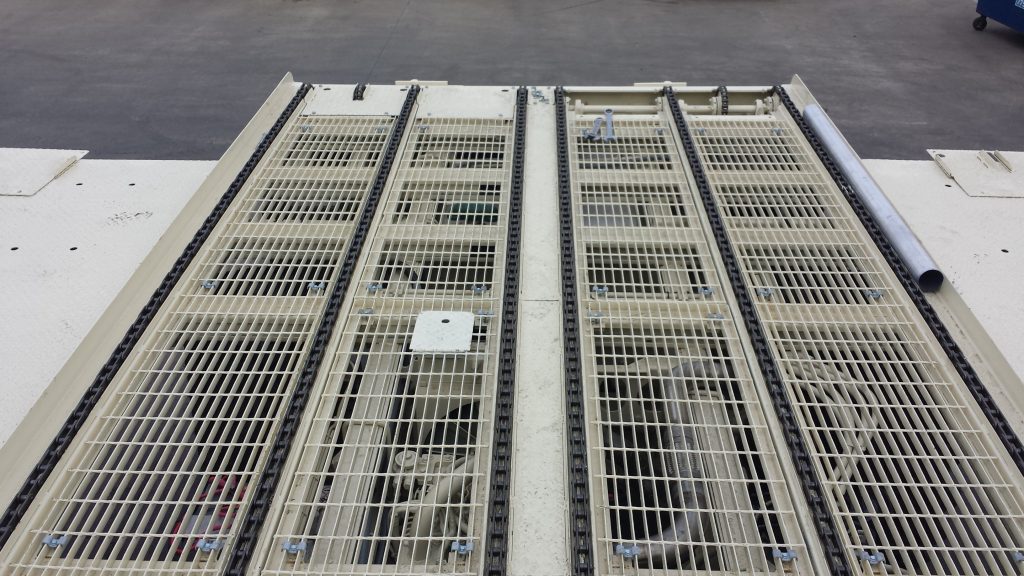

- 12 Pallet Chain Transfer Deck

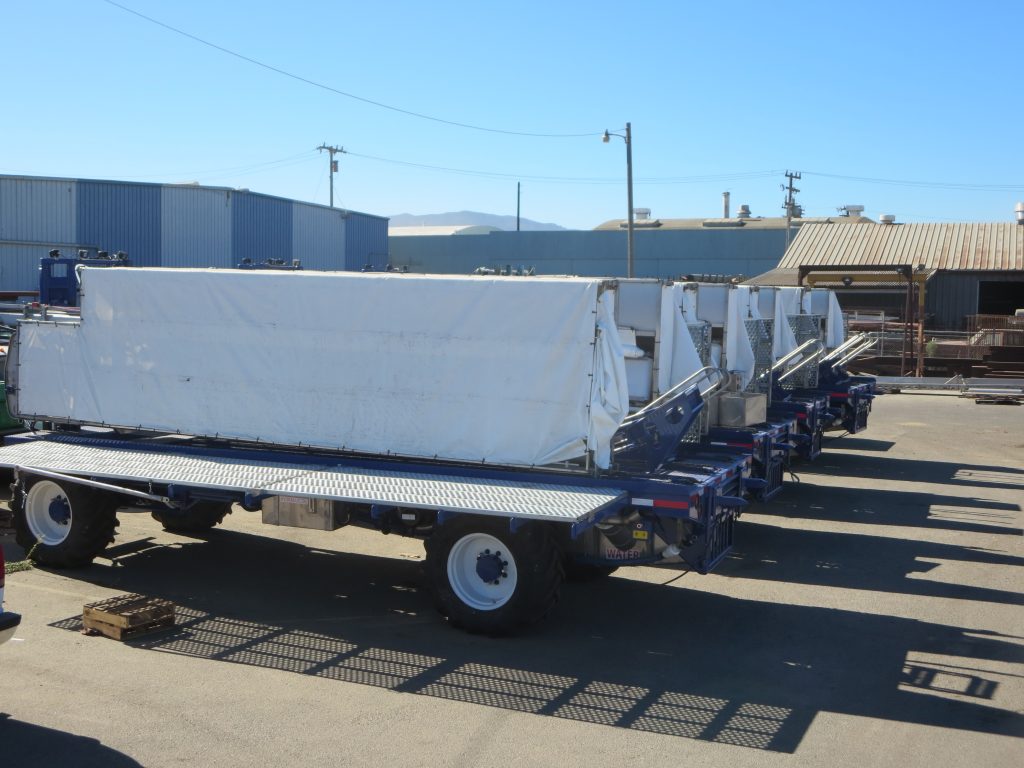

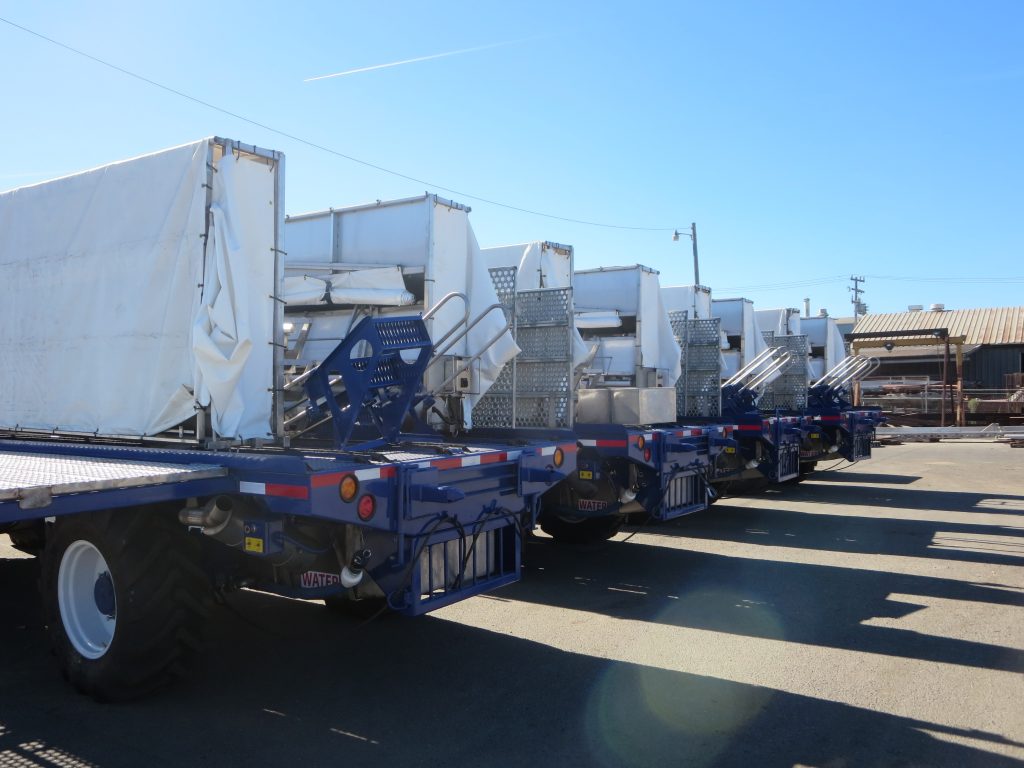

- Powered Fold up Platforms
- Pull out tubes to support Platforms
- Controls

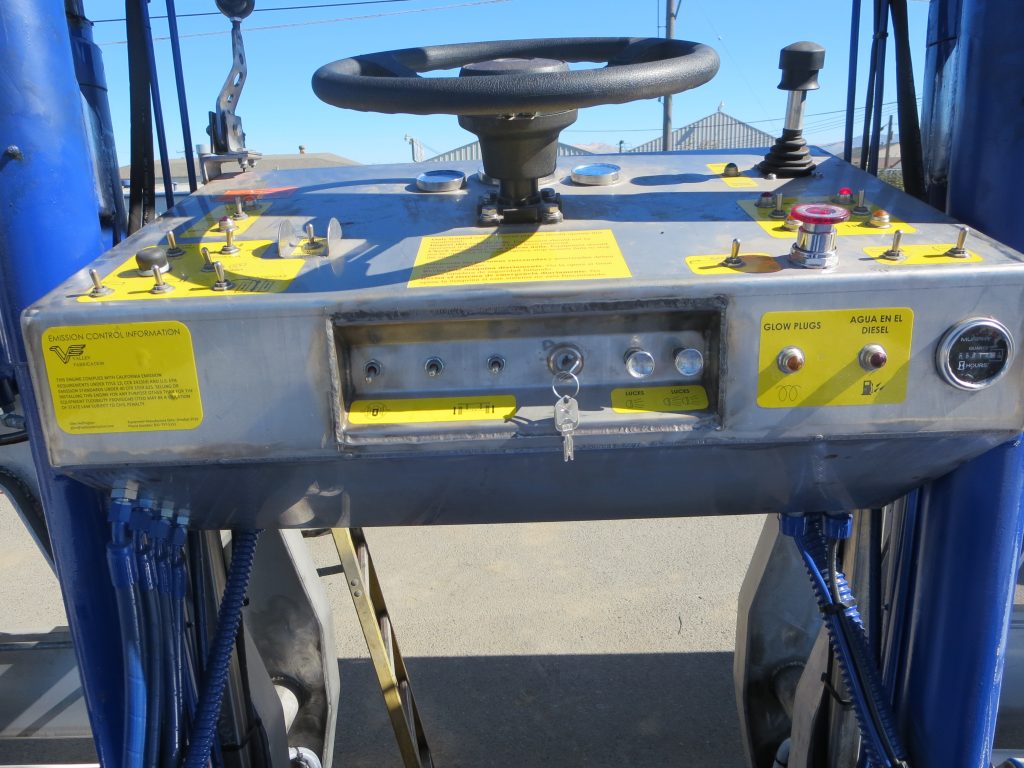

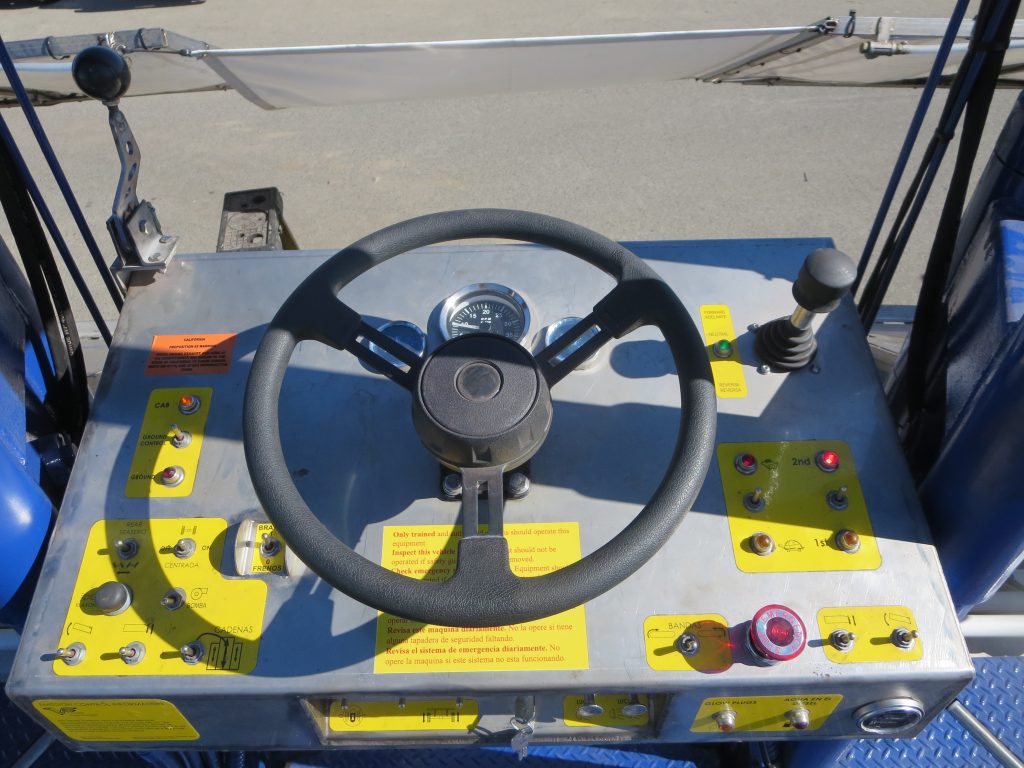

- Centered Drivers Station with SS Dash
- Remote control box tether with dead-man switch.
- Wing Speed Control on the right wing
- Chain Transfer switches on the left and right rear of the machine along with rear steer control and E-Stop
- Self-centering rear axle

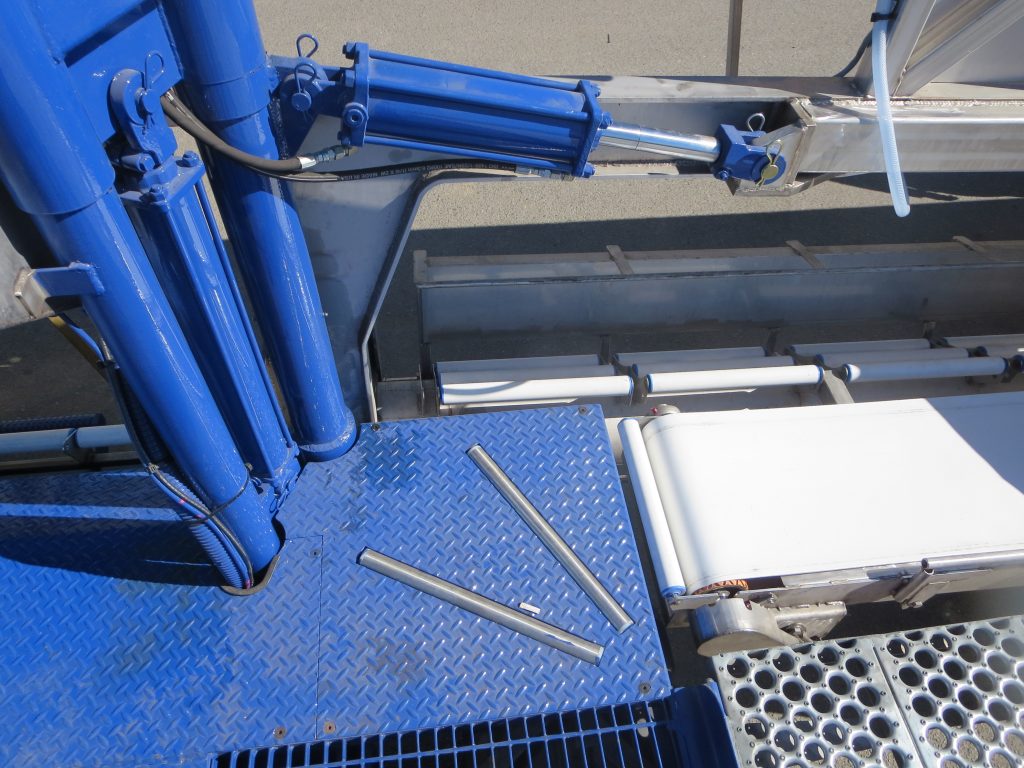

- Wing Hydraulic Lift and Rotate

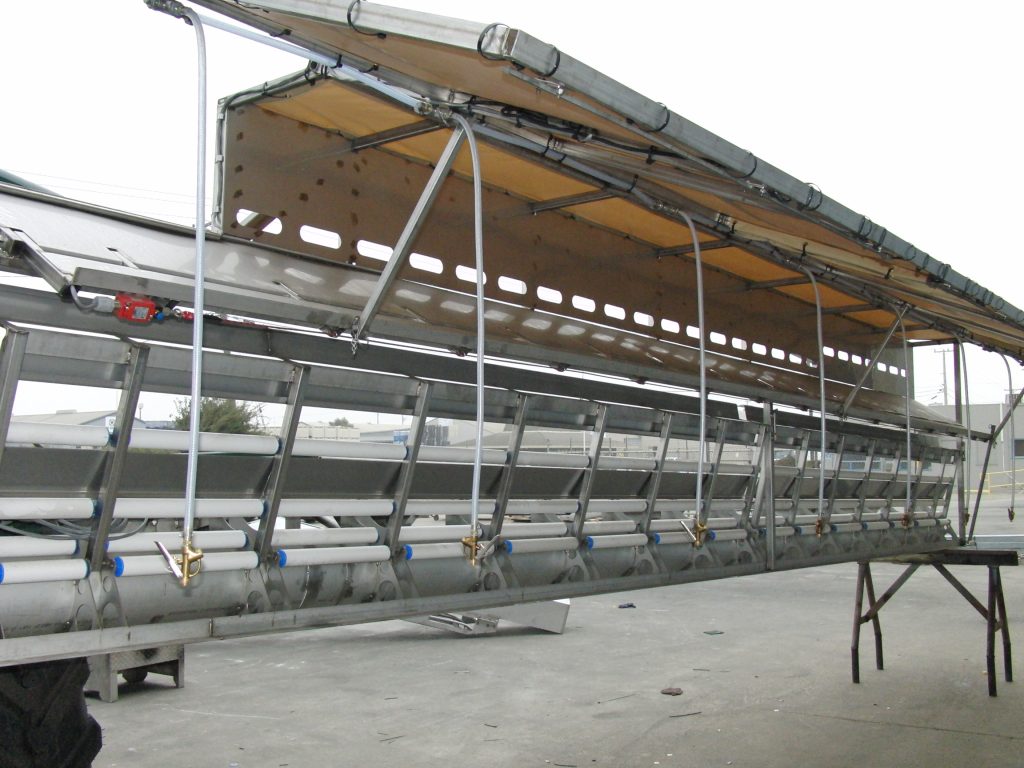

- Stainless Wing Construction

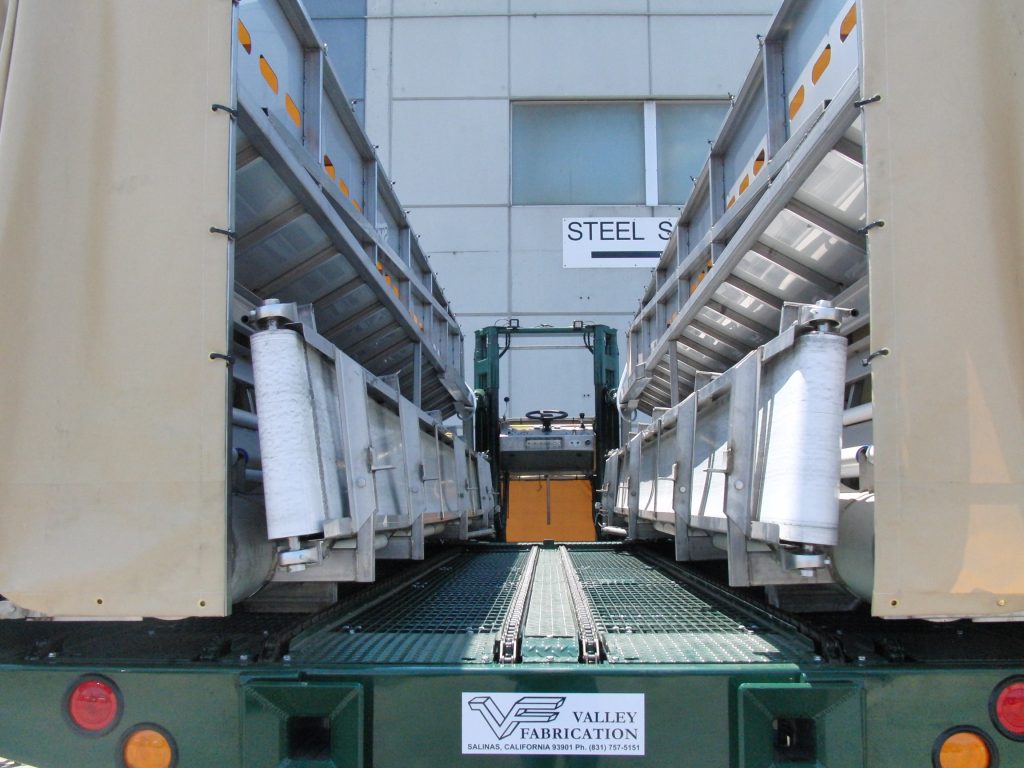

- With open design for boxes to push easily onto a folding powered conveyor
- 16″ wide conveyor, hydraulicly powered

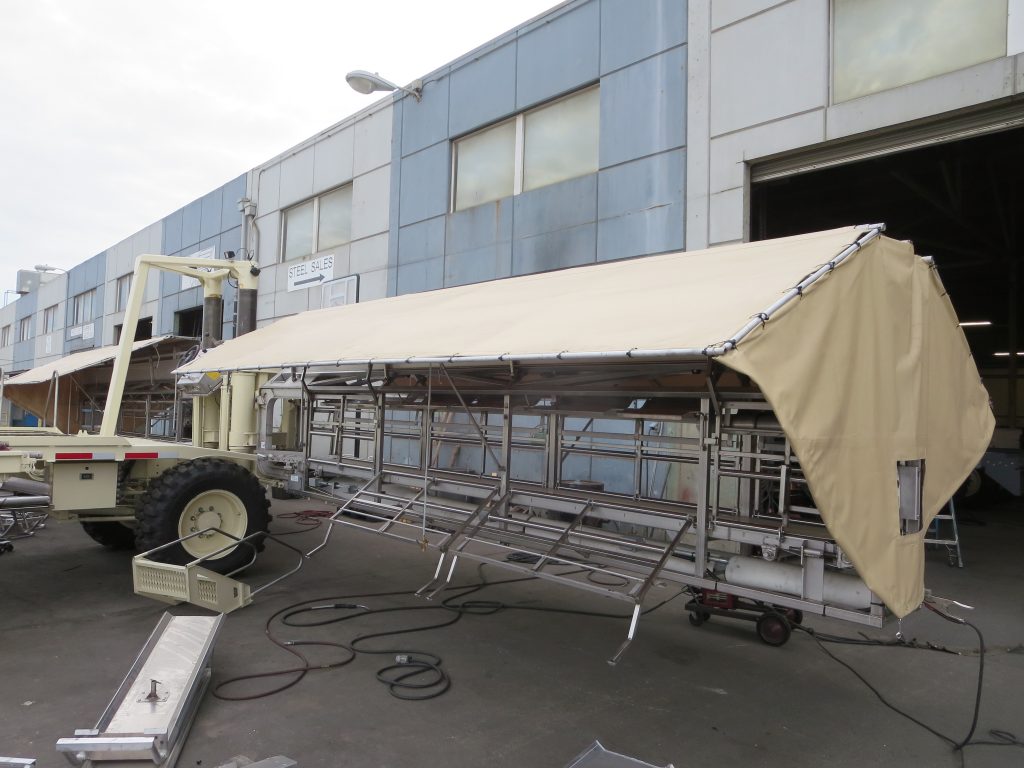

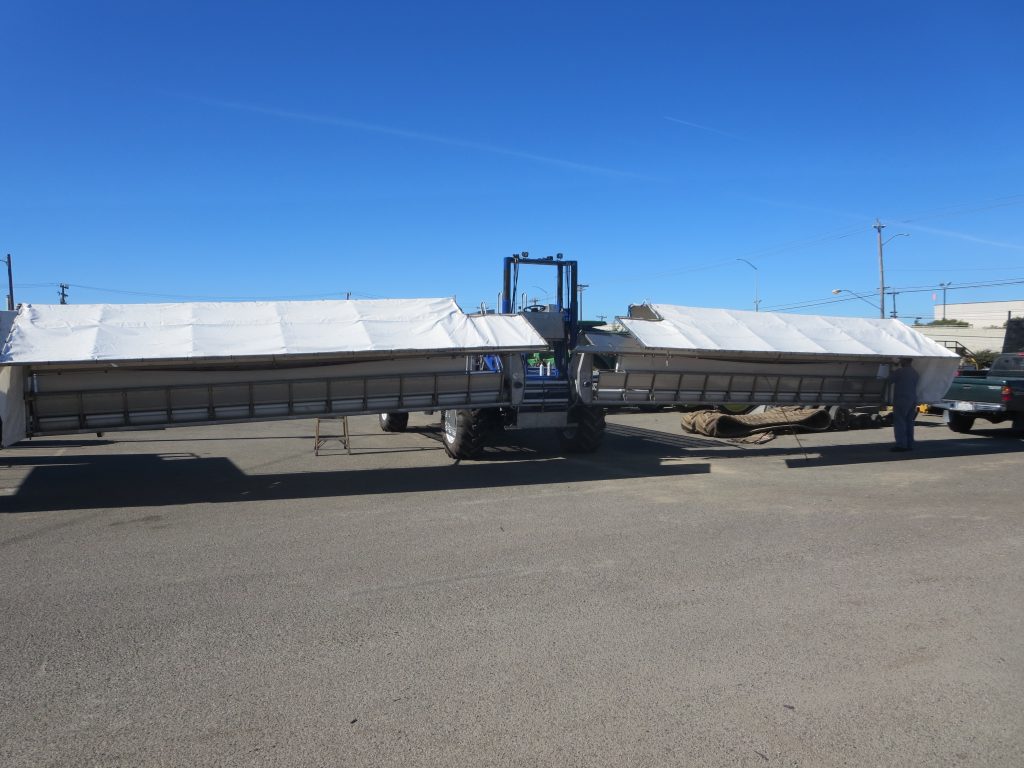

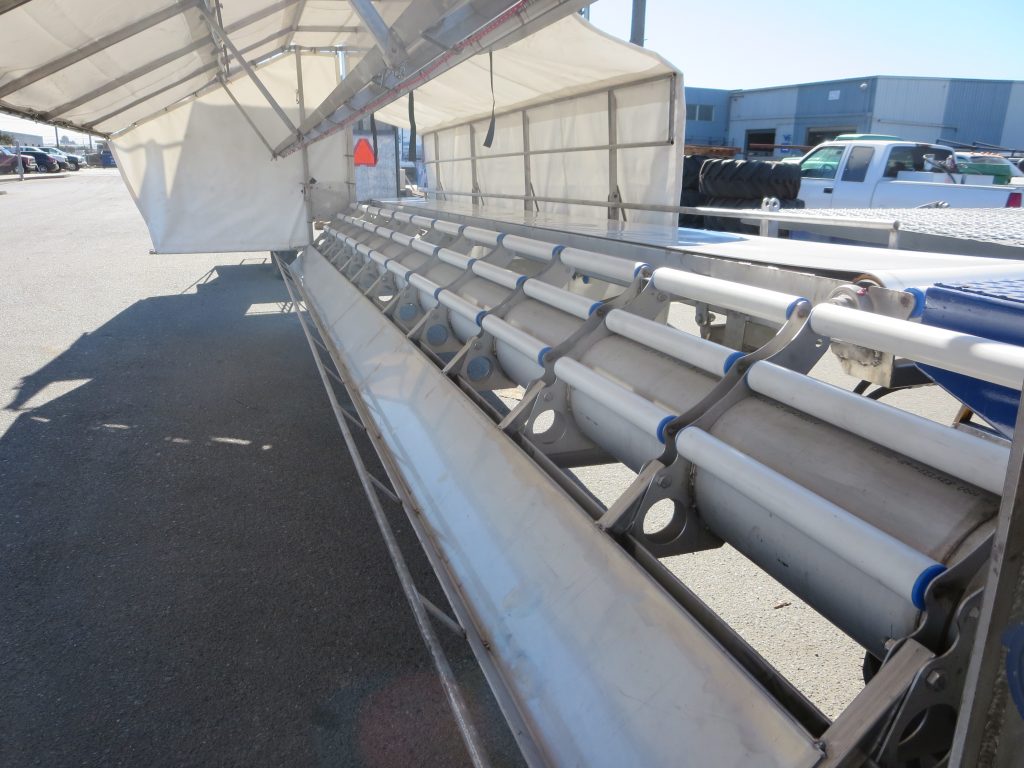

- Folding shade Canopy on both sides and wind flap on the conveyor side of the wing that makes a tunnel around the conveyor

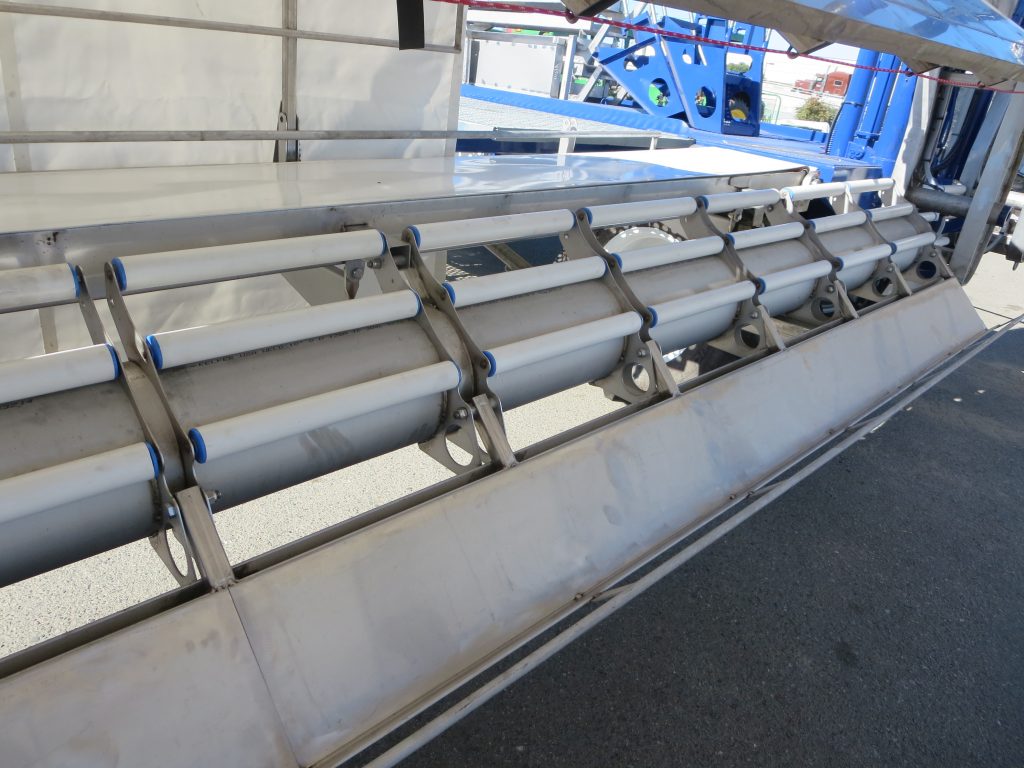

- SS roller with plastic roller ends and hollow shaft
- Full length box slide
- Hydraulically driven Generator for 120VAC single phase power

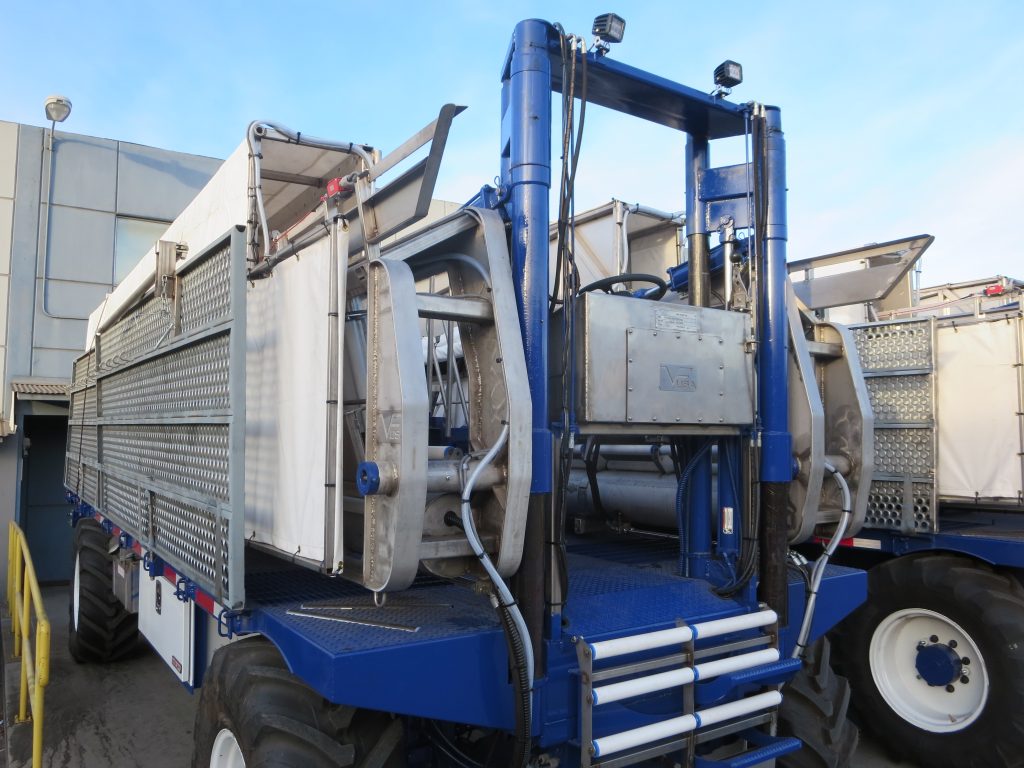

- Mast
- Water
- Hydraulic driven water pump
- 170 gallon Stainless steel tank
- Spray nozzles on the wings for cleaning product
- 60 Gallon Stainless Steel Diesel Tank
