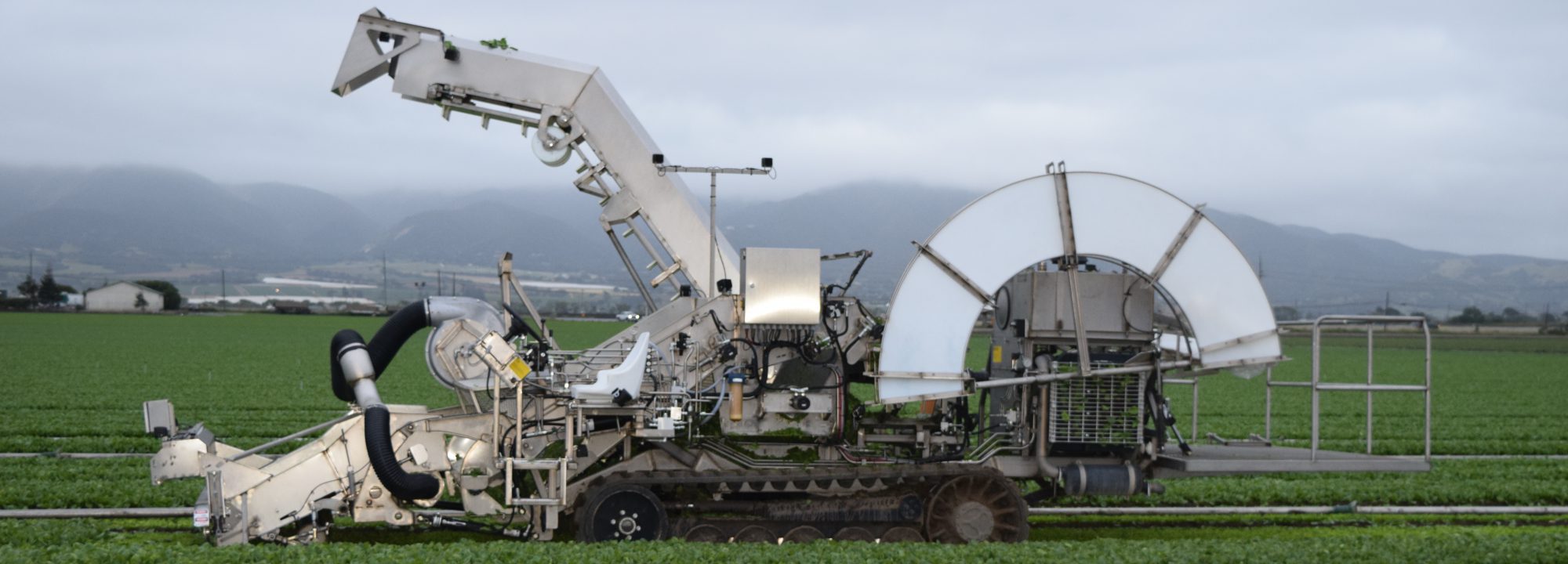

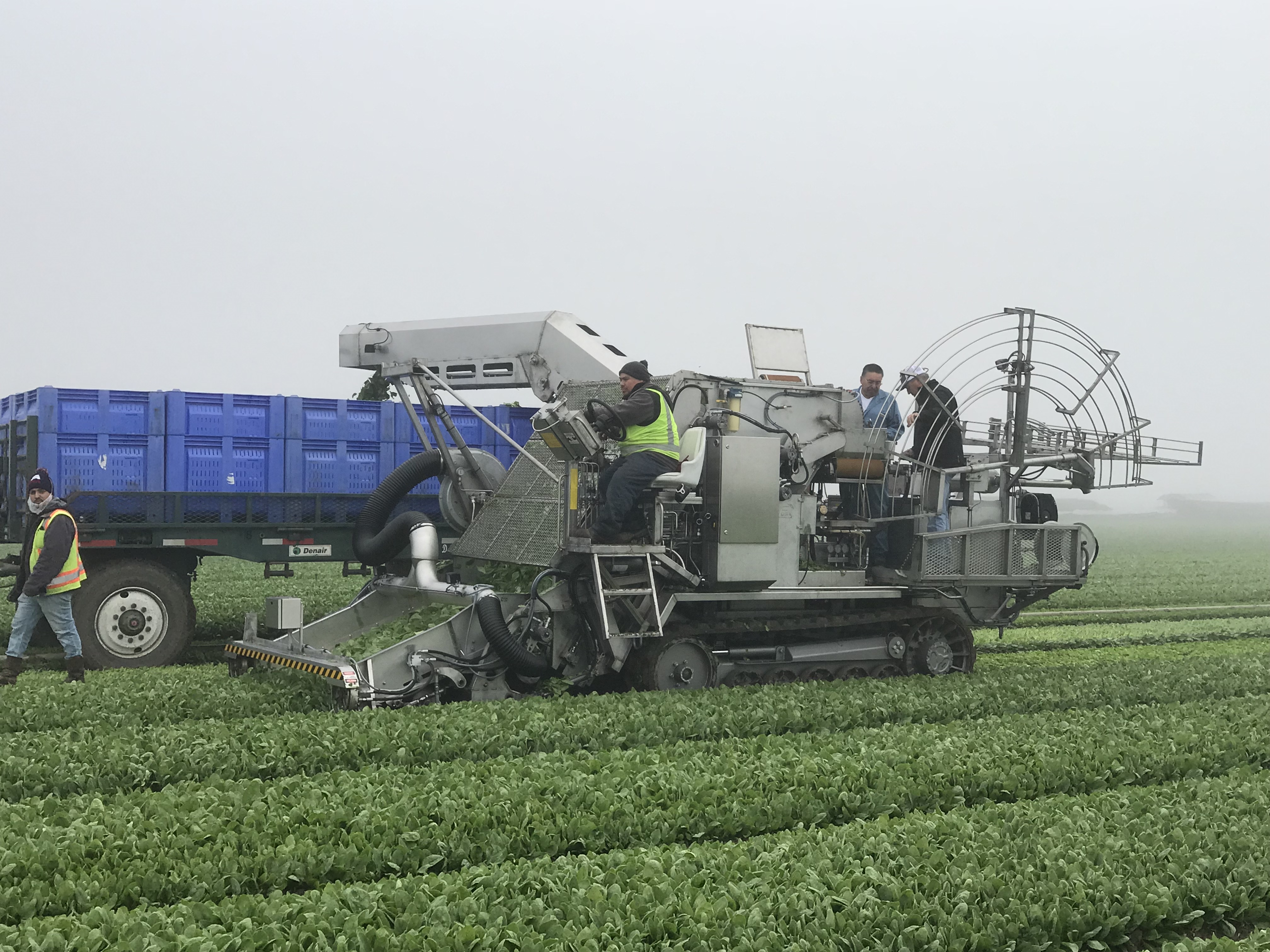

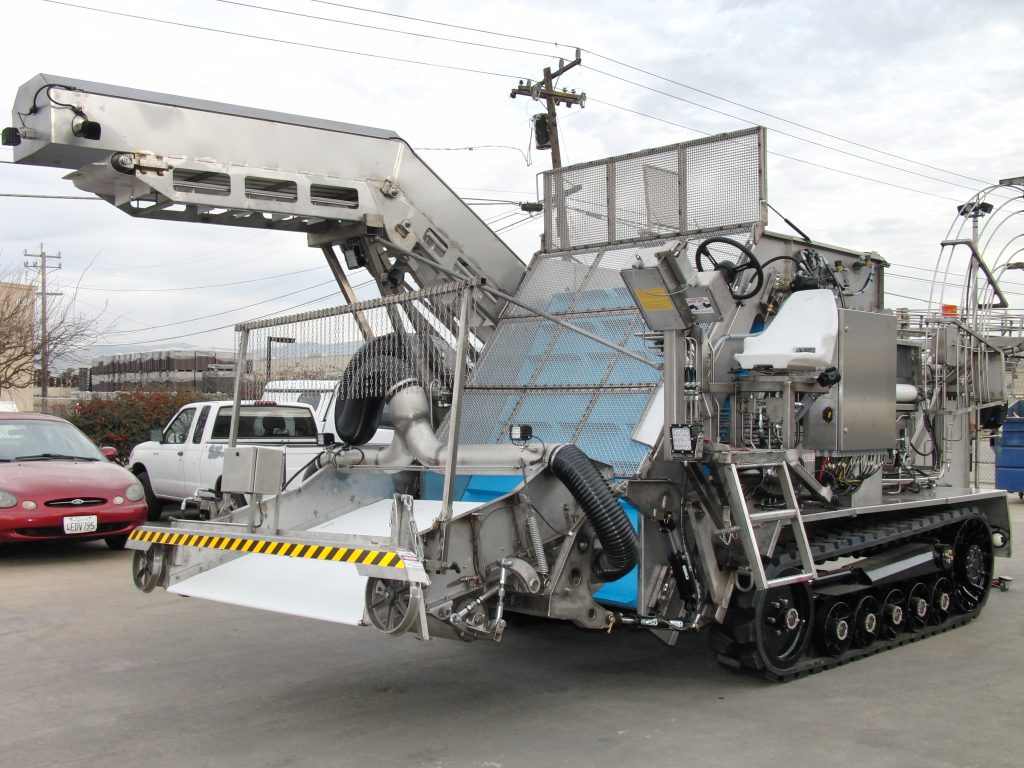

Leaf Cutter 4

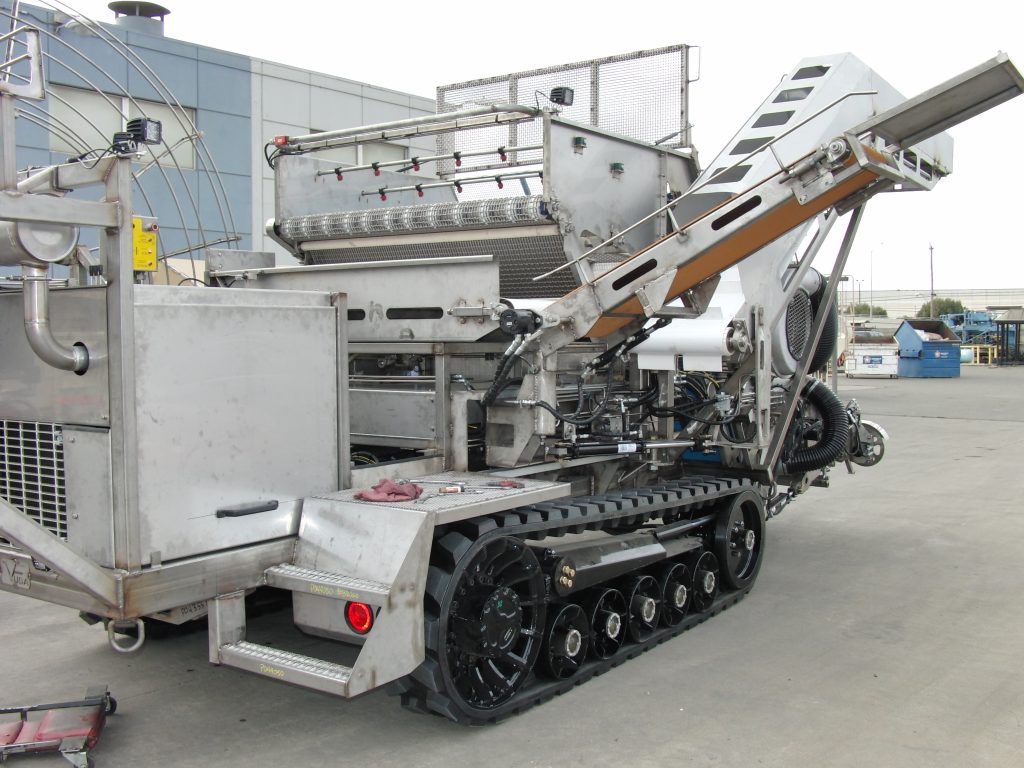

  • 12″ Valley Fabrication tracks
  • QSF3.8 Cummins Tier 4 Final Engine, 130 hp
  • Valley Fabrication rocking beam
  • Stainless Steel construction from Frame Up
  • Standard Valley Fab Header and Float system
    • Supply water on the pick up belt for reduced friction and cooling
    • Standard Mol pickup belt

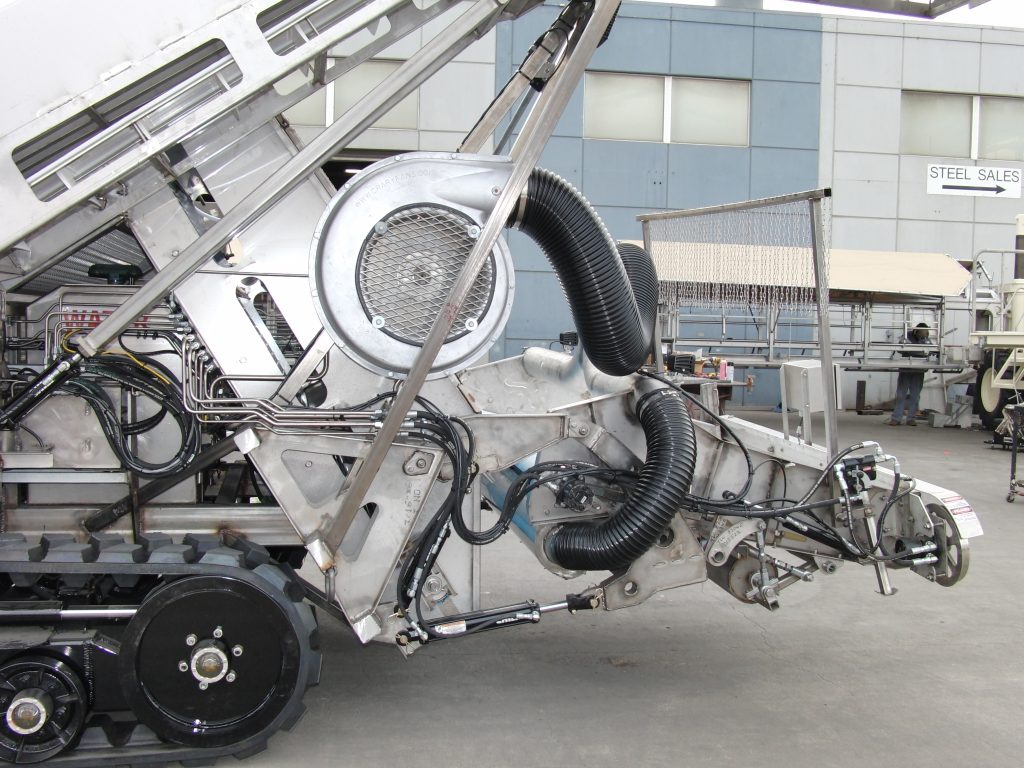

    • Squirrel cage mouse or forward blower mounted to the front of the conveyor (Optional)
    • Standard air jump
    • Standard 3/4″ nose bar
    • Removable belt side supports
  • Incline Conveyor with 3″ Flights
  • Single Sort Conveyor
    • One agitator
    • One Stainless Steel Auger
  • 18″ Cross Conveyor with Lift Linkage for Bulk/Tote Mode
  • 20″ Elevator Conveyor with 4″ flights
    • Rotates to reach inside and outside bin
  • 18″ Tote Exit Conveyor
  • Forklift Side to move Tote Exit and Elevator into Harvesting Position
    • Safety switches and sensors for safe and easy conversion from bulk to tote mode
  • Tote sweep made with UHMW or Round Bar bottom
